31 Ford 31 Ford 53 Ford F-100 Pickup
Mopar Suspension Install Page 1



<<   < - 1 - 2 - 3 - 4 - 5 - >   >>
Installation By: Roger Mingle

A picture walk thru of Sub-framing a 53 Ford F-100 pick-up with a mopar front end.

Pic 01

53 Ford F-100. Stock front suspension. Rides like a truck and steers like one.

Pic 02

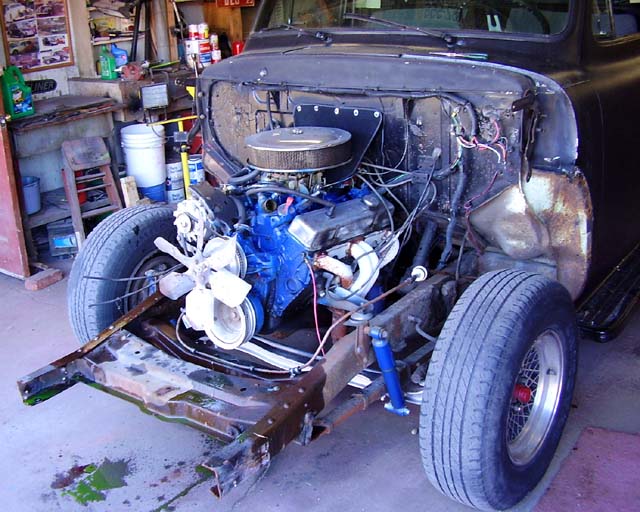

Running a 350 Chevy V8 and 350 turbo trans.

Pic 03

Pic 04

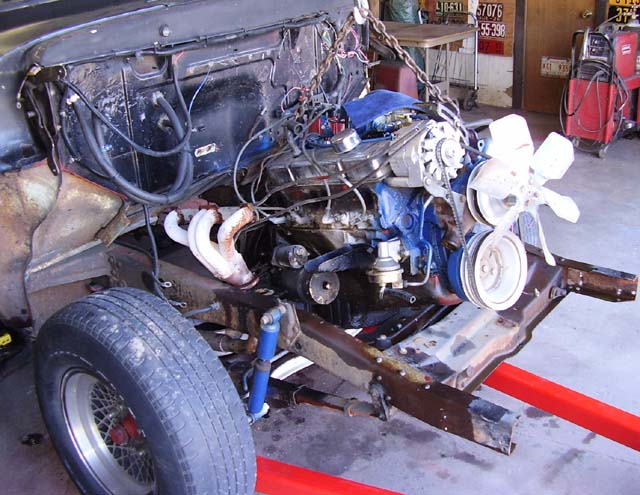

350 Chevy V8 and trans on the way out.

Pic 05

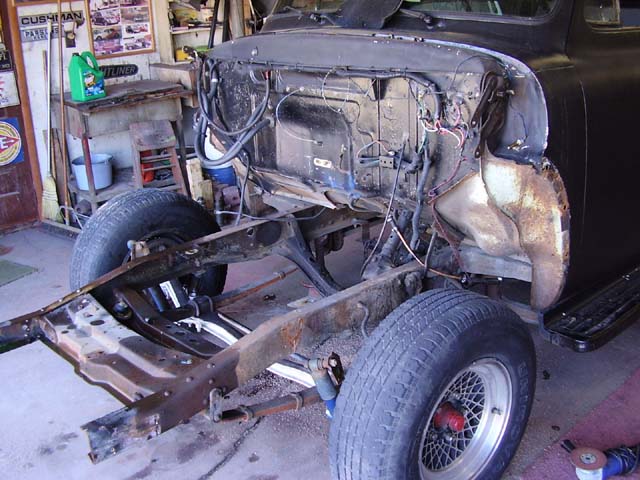

Leaves a big empty hole.

Pic 06

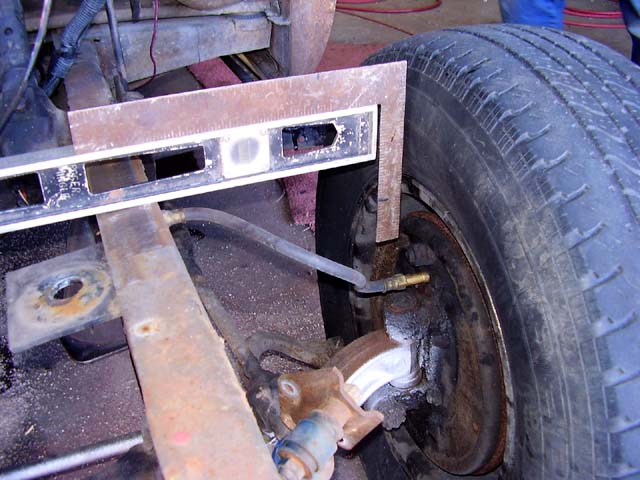

We need to find the centerline of the existing axle. Line the square up to the center of the kingpin (both sides) and make a mark on the frame.

Pic 07

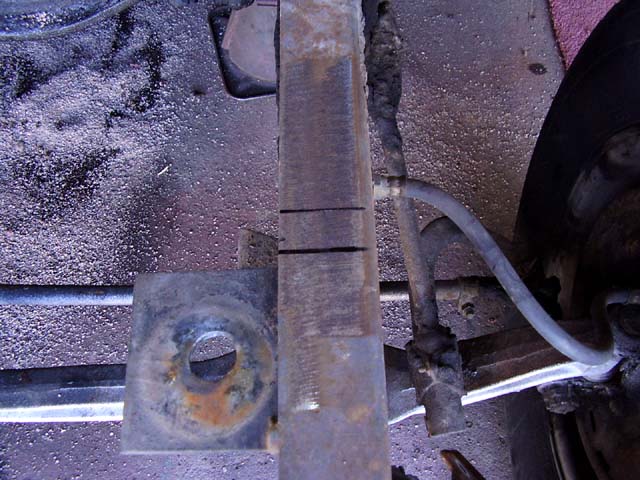

Move the mark 1" forward. This makes the wheel fit the finished wheel opening better. File or hacksaw the mark so it dosen't get cleaned off.

Pic 08

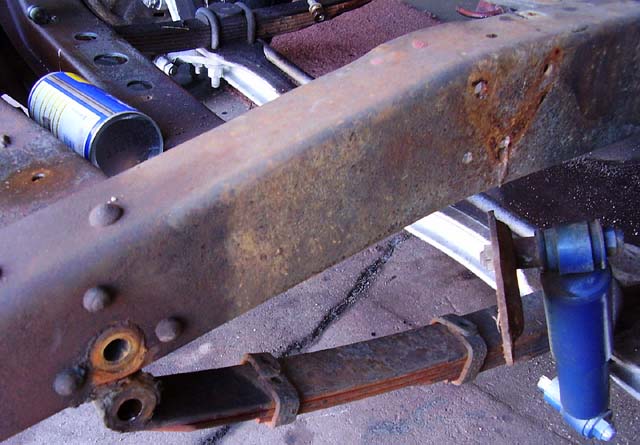

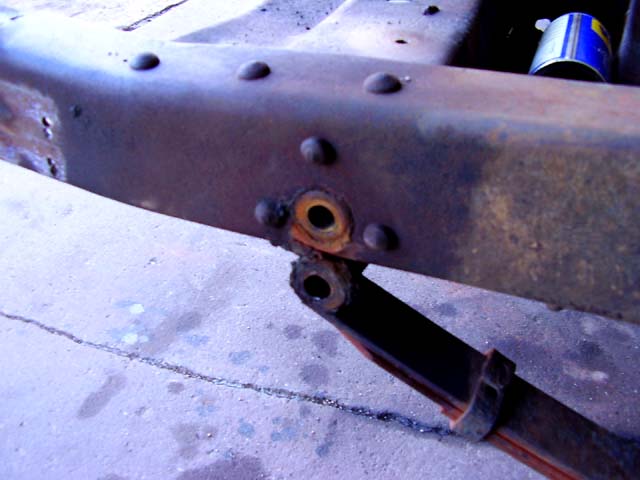

Unhook the spring shackles, shocks, brake fittings and steering.

Pic 09

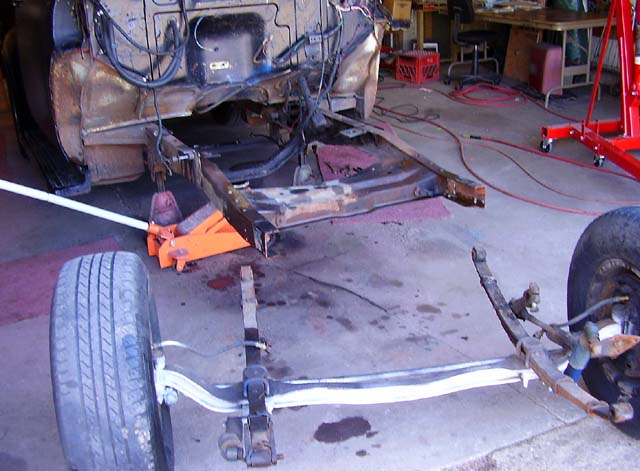

Then roll everything out from under.

Pic 10

Pic 11

Installation By: Roger Mingle

<<   < - 1 - 2 - 3 - 4 - 5 - >   >>
Last Update: 03/26/05 Hits:
