Installation By: Roger Mingle

A picture walk thru of Sub-framing a 61 ford unibody pick-up with a mopar front end.

Pic 01

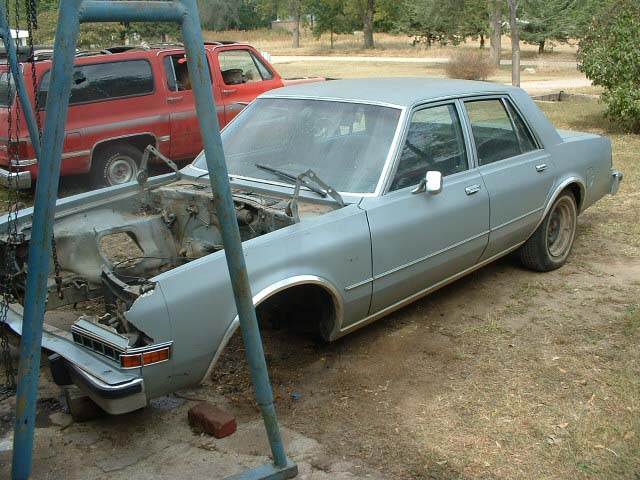

It helps to have a complete donor car. You get the sub-frame, steering column, brake pedal, master cyl & in this case the motor. 318 cu. in. 1984 Dodge diplomat Police Cruiser.

Pic 02

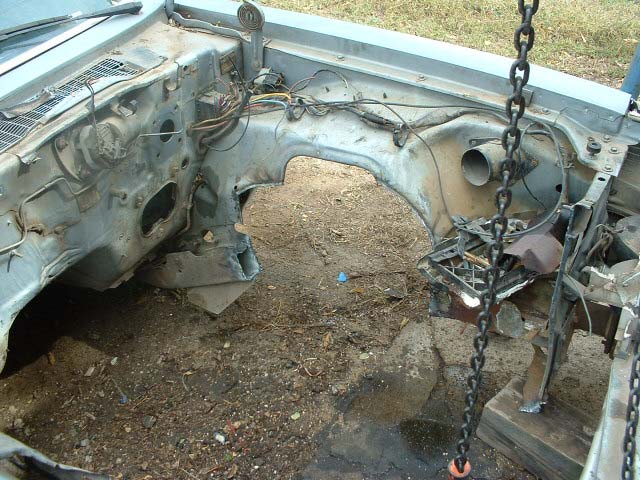

When removing the sub-frame you can take the steering box & upper a-frames off or you can take a hot saw to the unibody frame rail.

Pic 03

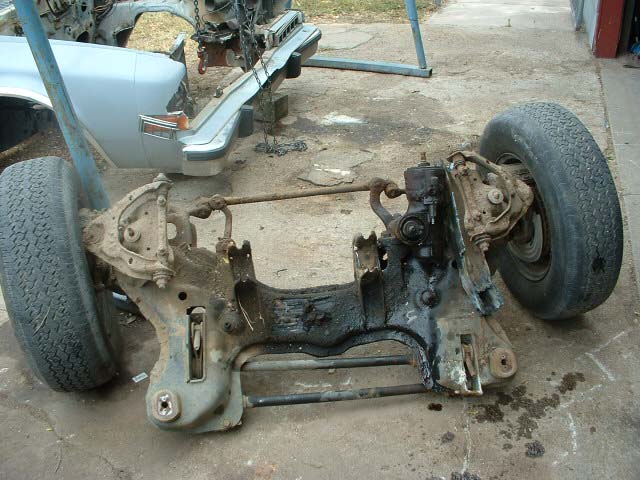

Heres what you are dragging out from under. Notice the piece of unibody rail by the steering box.

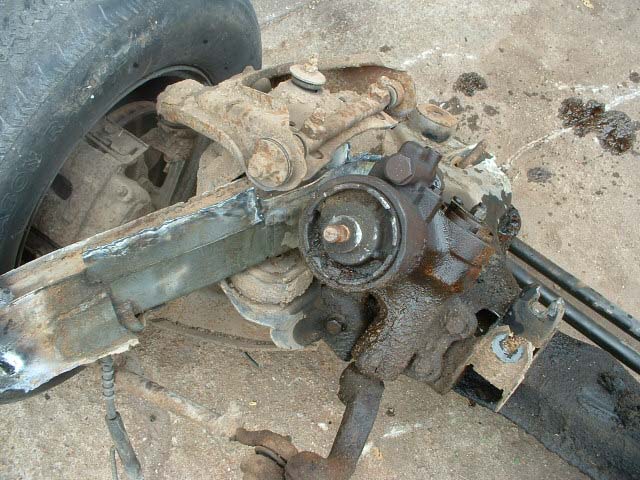

Pic 04

Just pull it out and trash it.

Pic 05

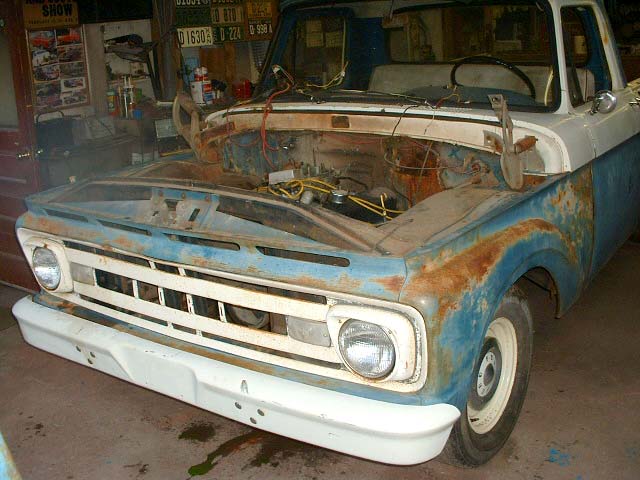

Heres the 61 unibody Ford. Even tho it is a unibody it still has a full frame. You just can't take the bed off.

Pic 06

Pic 07

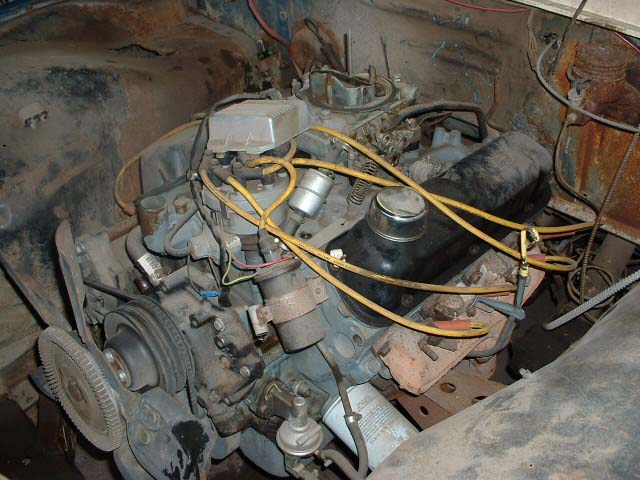

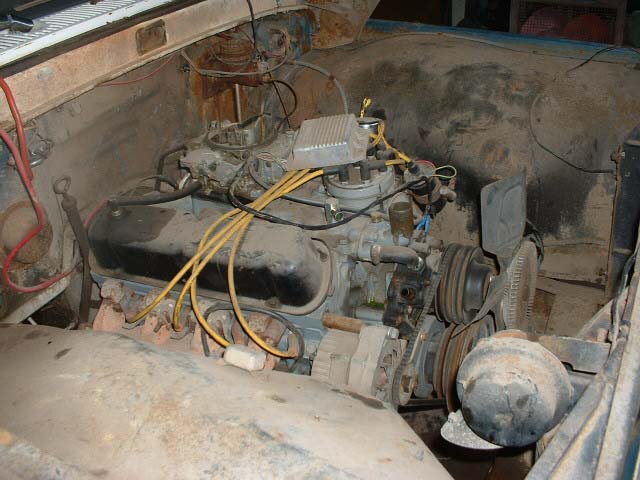

351 Ford & C-6 ready to come out.

Pic 09

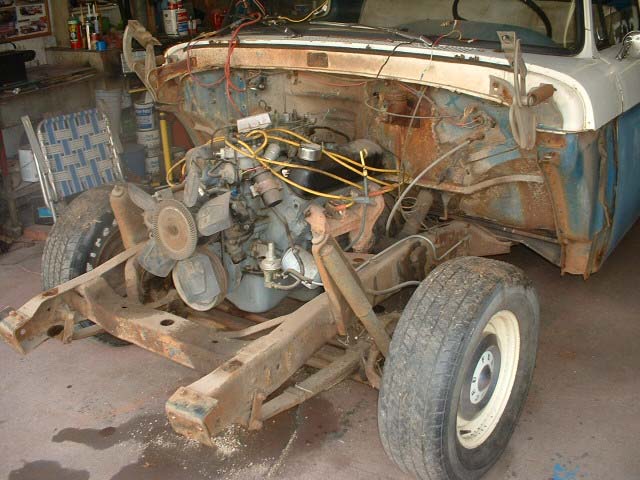

The front sheet metal out of the way.

Pic 10

Installation By: Roger Mingle
