Installation By: Roger Mingle

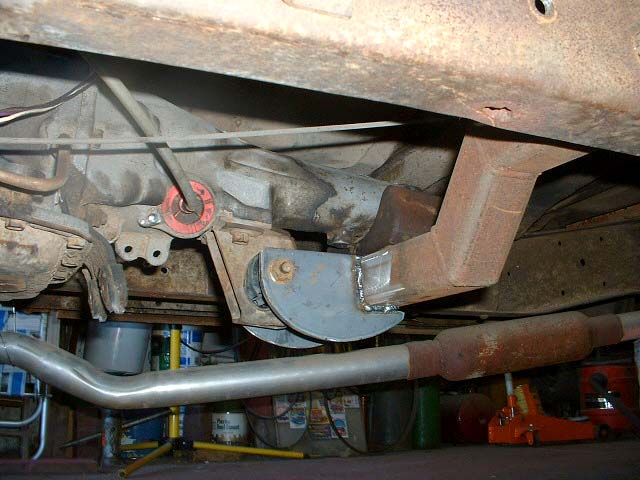

New trans crossmember for Mopar 727 tranny.

Pic 41

Looks like it mounts real nice.

Pic 42

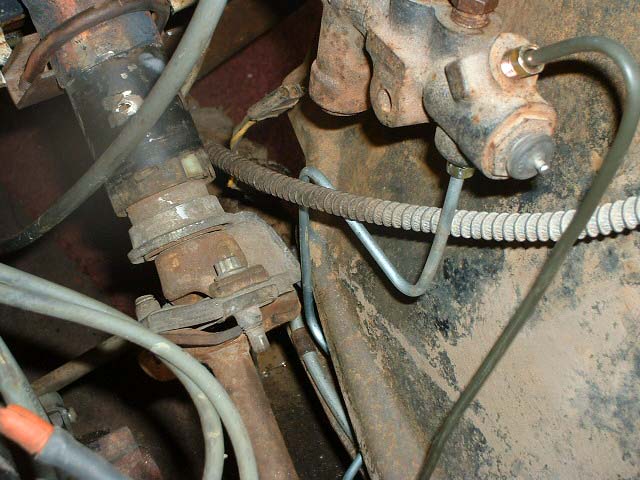

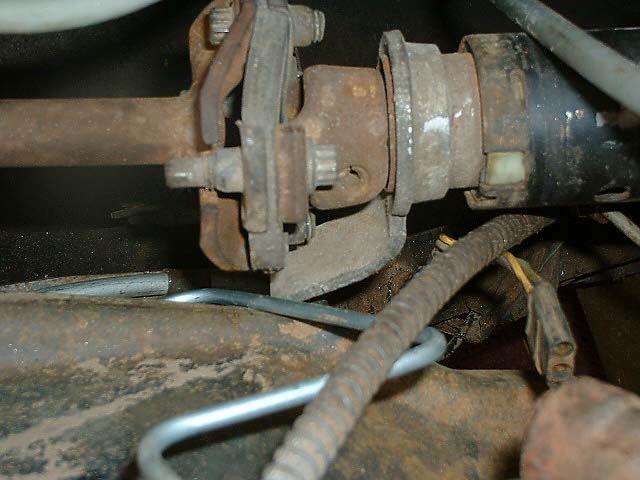

The inner fender panel, brake lines, shift linkage, E-brake cable all trying to fit in the same place. A little triming on the fender panel is in order.

Pic 43

Pic 44

Alternator & inner fender panel fighting over space. A large hammer takes care of it.

Pic 45

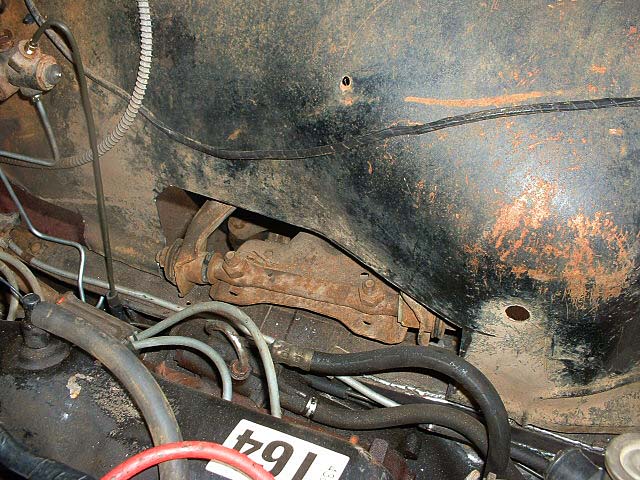

A little clearance for the upper A-arms.

Pic 46

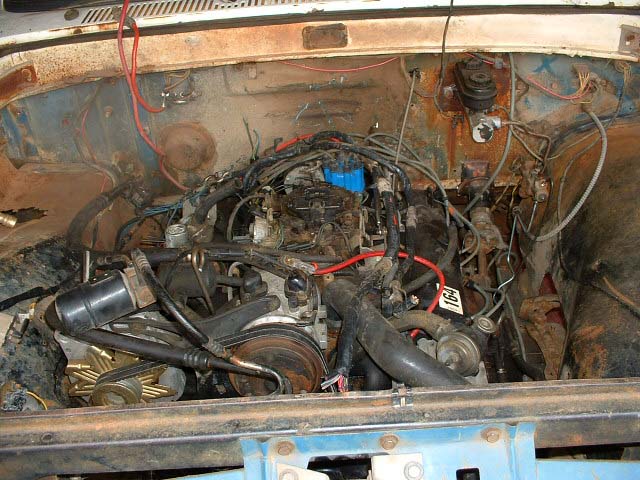

Everything shoved in the hole. Lots of clean-up & detail work to go.

Pic 47

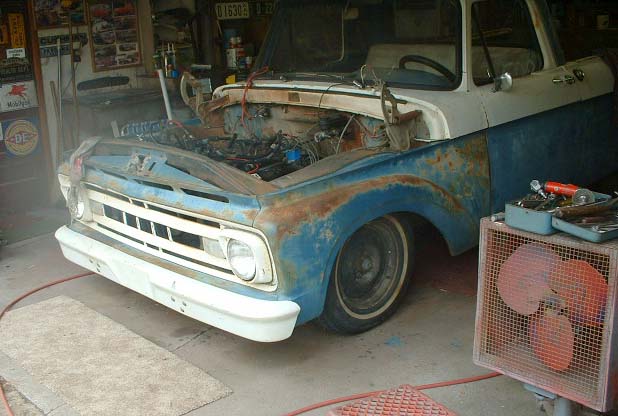

This is the final ride height where it will sit with full travel of the front end. Next is to blow it apart & clean & paint & replace balljoints, tierods, ect.

Pic 48

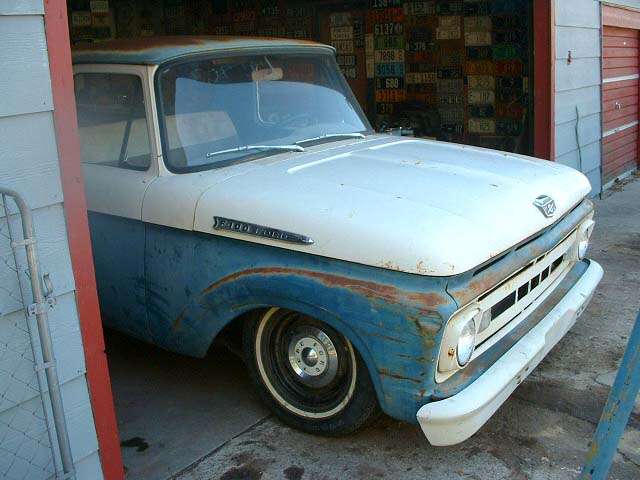

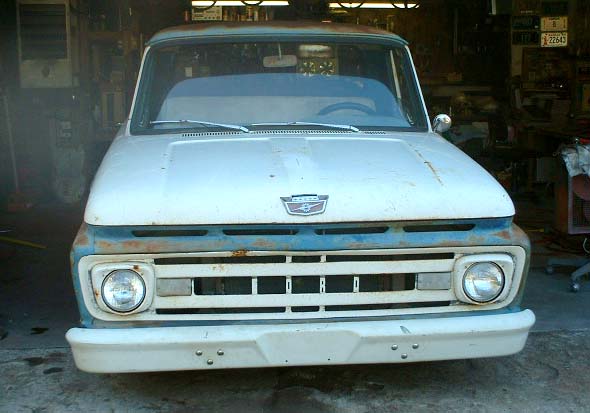

A couple more pics of the ride height.

Pic 49

Pic 50

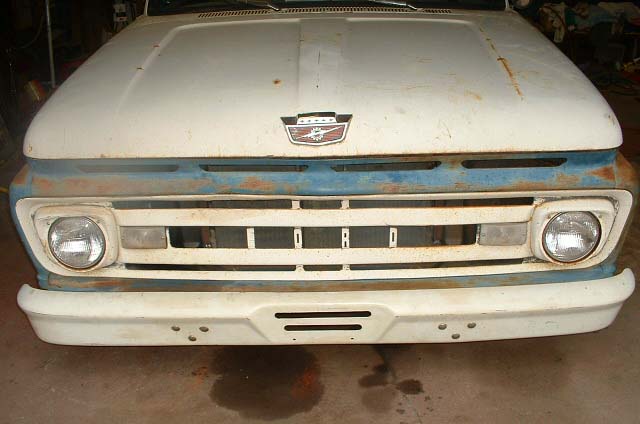

Part of the radiator sets below the grill so I made some air slots to allow more cooling.

Pic 51

I have installed probably 10-15 of these front-ends & no two are the same. This is just a general idea of how it is done. Please don't try this unless you are an experienced mechanic.

Installation By: Roger Mingle
