Installation By: Roger Mingle

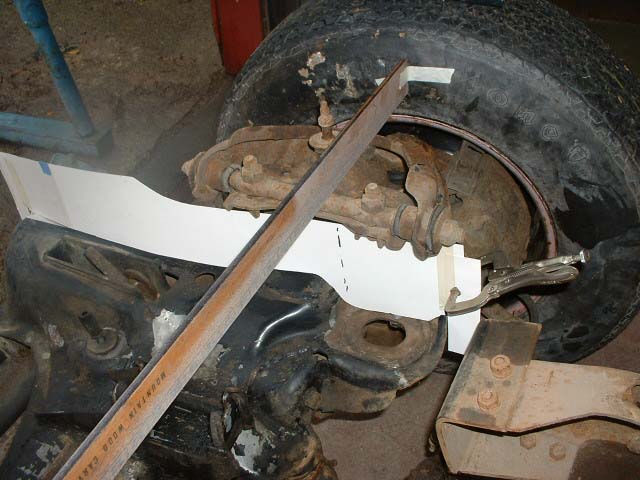

After measuring the width of the frame rails, figure where they will sit on the sub-frame. Cut a piece of poster board to fit the contour of the sub-frame.

Pic 11

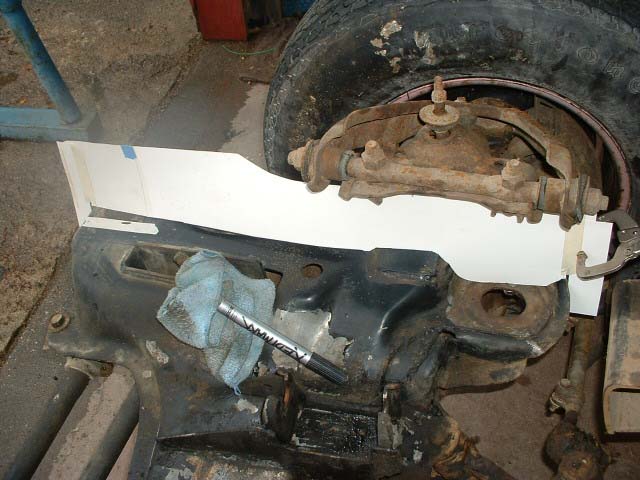

Place a straight edge across & line it up with the top zerk fitting. Come straight down off this straight edge & mark the center line on the posterboard & on the sub-frame. In this case the centerline is 1" foward of the mounting pad.

Pic 12

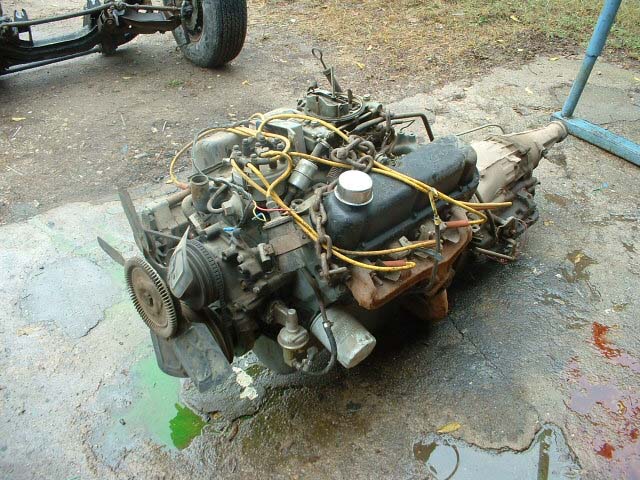

Get the steering box & the motor out of the way.

Pic 13

Pic 14

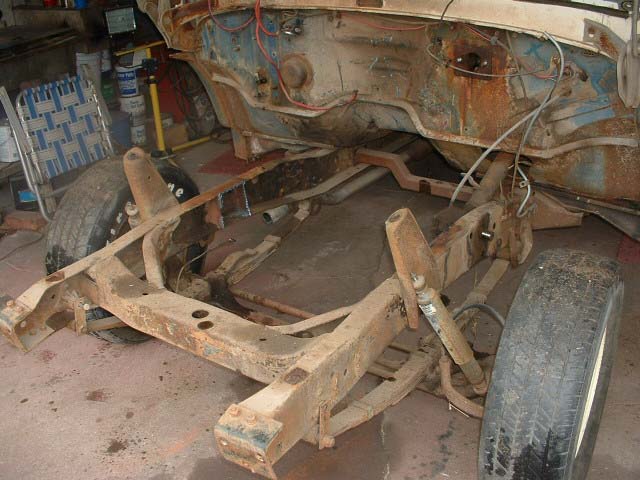

This is what the frame rails look like. Notice where the old fruit jar master cyl was mounted. More on this later.

Pic 15

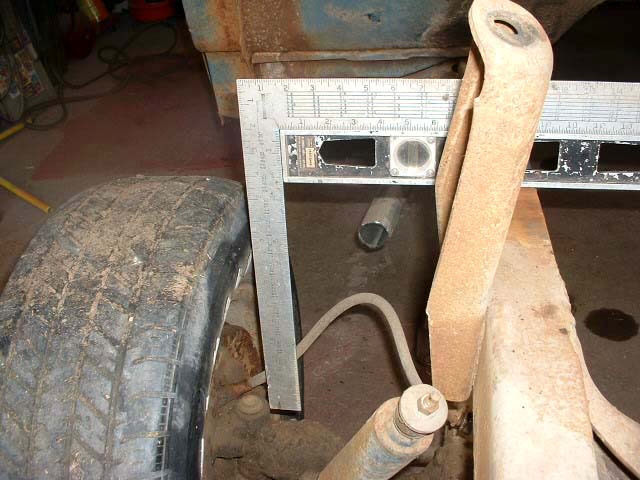

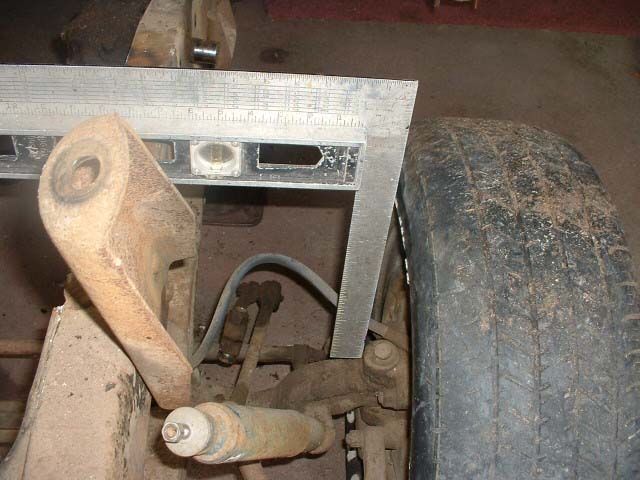

Before the I-beam axle comes out we need to mark the centerline of the axle on the frame.

Pic 16

Pic 17

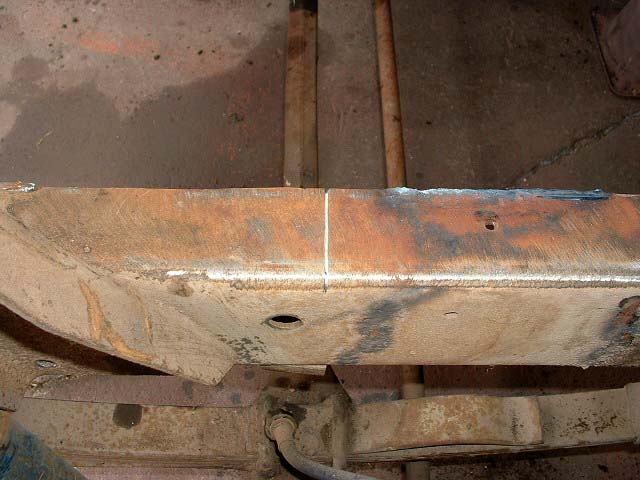

This is the centerline of the original axle. Mark it on the frame with a hacksaw so it won't wipe or grind off.

Pic 18

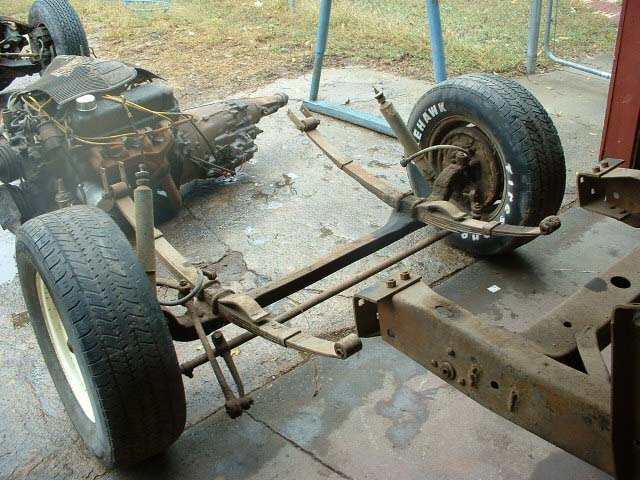

The axle & springs are rolled out.

Pic 19

Pic 20

Installation By: Roger Mingle
